- Size: 18m³
- Place of Origin: China
- Brand Name: HOBON
- Model Number: HBN-8C
- Weight: 2300.000 kg

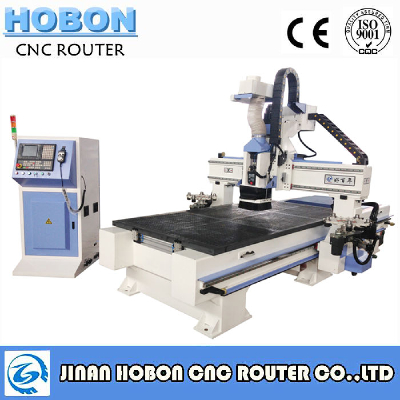

1. Features of HOBON HBN-8C CNC ROUTER ATC :
♦ Suitable for diversification, production and processing of difficult mode, belonging precision high-efficiency processing equipment.
♦ Working table can be directly adsorbed whole big plate processing, does not require any action cropped with diy cnc router.
♦ It can be any permutation and combination with vertical drilling, sidetracking, a single drill, drilling, and other multi-purpose drill mode.
2. Application of HOBON HBN-8C CNC ROUTER ATC :
♦ This machine suitable for processing wood door, decorative buckle line, paint doors, paint cabinet doors, bathroom cabinets and other plate;
♦ Advertising Industry: Logo, meeting sign board, signage, billboard etc;
♦ Artwork and Decoration Industry: wood crafts, gift wood box etc;
♦ Electronic Industry: circuit board, insulation material etc;
♦ Music Industry: musical instrument, loudspeaker box etc;
♦ Soft metal: aluminum, copper etc;
3. Parameters of HOBON HBN-8C CNC ROUTER ATC :
| Model | HBN-8C CNC ROUTER ATC |
| Working size | 1500*3000*300mm |
| Body structure | Heavy duty body,Steel welding beam,Square housing |
| Working table | Vacuum table |
| Working accuracy | ±0.02mm |
| Repositioning accuracy | ±0.02mm |
| Traveling speed | 70m/min |
| Working speed | 25m/min |
| Spindle | Italy 9.0kw HSK/HSD air cooling spindle |
| Spindle rotary speed | 6000-24000rpm |
| Control system | Taiwan Syntec6MA controller |
| Drive and motor | Japan 850W YASKAWA motor and driver |
| Transmission mode | Taiwan PMI square guide rail for XYZ axis, gear wheel for XY axis, German ball screw for Z axis |
| Working voltage | AC380V/50-60HZ |
| Software | Type 3,artcam,Wentai etc |
| Command code | G-code, HPGL |
| Tool change | Disc Tool Change 8 tools ( 10 tools/16tools/20 tools optional ) |
| Packaging | Standard wooden case |
