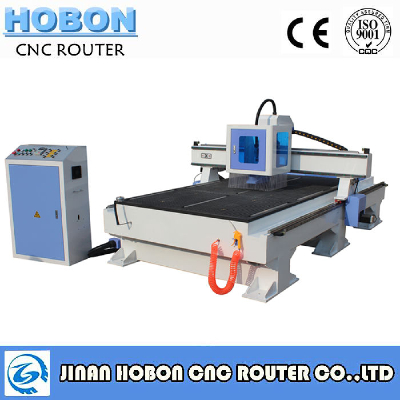

hobby hobon D45 cnc wood router

hobby hobon D45 cnc wood router

  • Min.Order Quantity: 1 Set/Sets
  • Supply Ability: 30 Set/Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-04-20
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  13m³
  • Place of Origin:  China
  • Brand Name:  HOBON
  • Model Number:  HOBON D45
  • Weight: 1500.000 kg

1. Features of HOBON D45 CNC Router:

♦ Cast steel structure makes our routers more stable.

♦ Excellent part:imported linear rails,import German ball screw,high speed air-cooling spindle,high precision bearing which has low noise and long life.

♦ Modularize frame design:select a variety of machining spindle configuration that can carve,hollow cut and mill.

♦ Reasonable  designs:   advanced rack and pinion drive in Y axis   with larger  speed and strength, wood carving machine router tools.

♦ Easy operation:advanced file pre-processing functions to ensure speed and accuracy of operation.

♦ Modularize frame design:select a variety of machining spindle configuration that can carve,hollow cut and mill.

♦ Taiwan strong vacuum holding device that up to 312 cubic meter per hour.

♦ Perfect lubrication system makes maintenance much easier and gives the  machine  a long life.


2. Application Industry of HOBON D45 CNC Router:

♦  Furniture Industry:  wood door, paint doors, paint cabinet doors, bathroom  cabinets and other plate;

♦ Advertising Industry:  Logo, meeting sign board, signage, billboard etc;

♦ Artwork and Decoration Industry:  wood crafts, gift wood box etc;

♦ Electronic Industry:  circuit board, insulation material etc;

♦ Music Industry:  musical instrument, loudspeaker box etc;

♦ Soft metal:  aluminum, copper etc;


3. Parameters of HOBON D45 CNC Router:

Model

HOBON D45 CNC Router

Working area

1300 x 2500 x 200mm

Machine size

3170 x 2300 x 1760mm

Resolutions

±0.0025mm

X-Y movement

Rack and pinion

Z movement

Ball screw

Guide

Linear 20 square/Taiwan HIWIN

Max. speed

35,000mm/min

Max. cutting speed

25,000mm/min

Spindle power

4.5kw air cooling spindle

Spindle speed

6000-18,000rpm

Inverter power

7.5kw

Motor and Driver

450B stepper motor and YAKO 2811 driver

Working voltage

AC380V/50-60Hz, 3-phase

Command code

G code / HPGL

Computer interface

USB 2.0

Collet

ER32-12.7mm,6mm,3.175mm

Software

Type3 Software/Artcam/Wentai

Controls

DSP control system

Packing dimensions

3300 x 2280 x 1800mm , 1500kg

Optional parts


1. Italy HSD 6.0KW Spindle

2. Japan 750W Servo motor and driver

3. Taiwan Delta inverter
